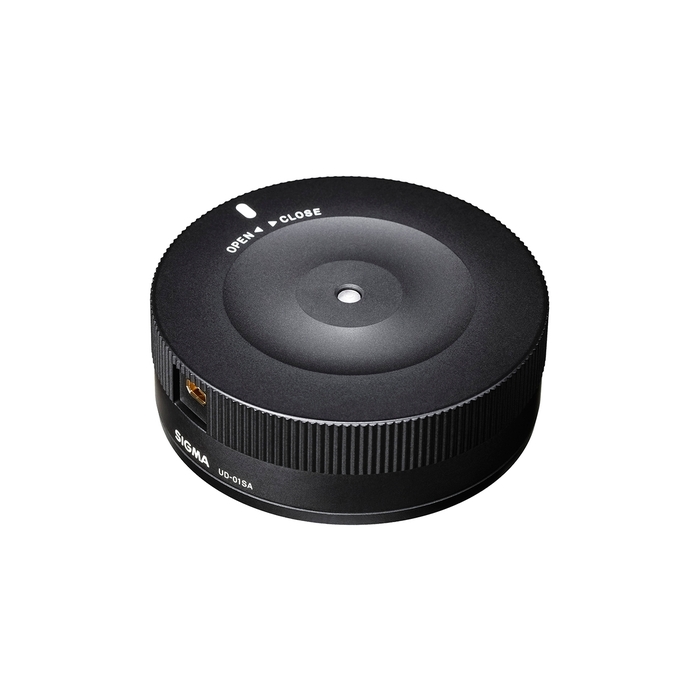

USB Dock UD-01

480 SEK

Choose a mount to see availability

Designed exclusively for the use with Sigma lenses
For Contemporary, Art, or Sports lensese and its accessories
The dock allows users to update firmware / customize settings the lenses
Available for Canon EF-mount, Nikon F-mount, Sigma SA-mount Sony A-mount, and Pentax K-mount

Buy from reseller

Specifications

Features

Accessory Type	USB Dock
EAN	SIGMA Sony A-mount Canon EF-mount Pentax Nikon F-mount 085126878566 085126878627 085126878542 085126878610 085126878559
Specification
Specifications Info	* The appearance and specifications are subject to change without notice

Product Line-up

USB DOCK UD-01 for Canon EF EAN 085126878542

USB DOCK UD-01 for Nikon F-mount EAN 085126878559

USB DOCK UD-01 for Sony A-mount EAN 085126878627

USB DOCK UD-01 for Sigma SA-mount EAN 085126878566

USB DOCK UD-01 for Pentax K-mount EAN 085126878610

Main functionality

By connecting a Sigma Art, Contemporary, or Sports lens to a computer with the Sigma USB DOCK, photographers can update the lens firmware and adjust focus position and other parameters. Exclusive Sigma Optimization Pro software makes customization easy. It is possible to select the autofocus speed and adjust the focus limiter and Optical Stabilizer (OS) function.

SIGMA Optimization Pro

Special Software “Sigma Optimization Pro” will offer the following customization.

For Contemporary, Art, and Sports line

Updating Lens Firmware

It is possible to update the lens firmware via the internet.

Focus Setting

Multiple focus setting options are available: 4 categories for fixed focal length lenses, and 16 categories (4 options for focal length) x (4 options for shooting distance) for zoom lenses

Full-time MF Setting*

It is possible to adjust the timing to operate the Full-time MF function by customizing how much rotation of the focus ring is required.
* Not compatible with 17-70mm F2.8-4 DC MACRO OS HSM C013、18-200mm F3.5-6.3 DC MACRO OS HSM C014、18-300mm F3.5-6.3 DC MACRO OS HSM C014、18-35mm F1.8 DC HSM A013、30mm F1.4 DC HSM A013、24-105mm F4 DG OS HSM A013、35mm F1.4 DG HSM A012、120-300mm F2.8 DG OS HSM S013.

For Sports line*

AF Speed Adjustment

There are 3 AF speed modes.

Focus Limiter Adjustment

Offering customization for the driving range of auto focus enables a photographer to exactly reflect the personal preference.

OS Setting

For the Optical Stabilizer (OS), 3 unique view modes are available. This offers the most suited OS function for any shooting style.
* Also compatible with the 150-600mm F5-6.3 DG OS HSM C015, 100-400mm F5-6.3 DG OS HSM C017.

Connecting with Sigma Optimization Pro

By connecting the USB DOCK UD-01 to a compatible lens or an accessory, photographers can configure the following settings of the corresponding product via the exclusive Sigma Optimization Pro software.

TUTORIAL

You can download “Sigma Optimization Pro for Windows” and “Sigma Optimization Pro for Macintosh” from the link below.

SIGMA OPTIMAZATION PRO DOWNLOAD

Condition of Operation : Windows

This software operates in the condition that meets with the following criteria;

CPU : Intel Core2 Duo or faster processor
OS : Windows 8.1, Windows 10, Windows 11
1GB of available hard drive space.
24-bit graphics card (approx. 16.7 million colors).
1024 x 768 or higher screen resolution.
USB 1.1 as standard.

Condition of Operation : Mac OS

This software operates in the condition that meets with the following criteria;

OS : macOS Mojave 10.14, macOS Catalina 10.15, macOS Big Sur 11, macOS Monterey 12, macOS Ventura 13
CPU : Intel Processor, Apple M Series Chip
1GB of RAM
1GB of available hard disk space
24bit or more graphics card
1024 x 768 or higher screen resolution.
USB 1.1 as standard.
