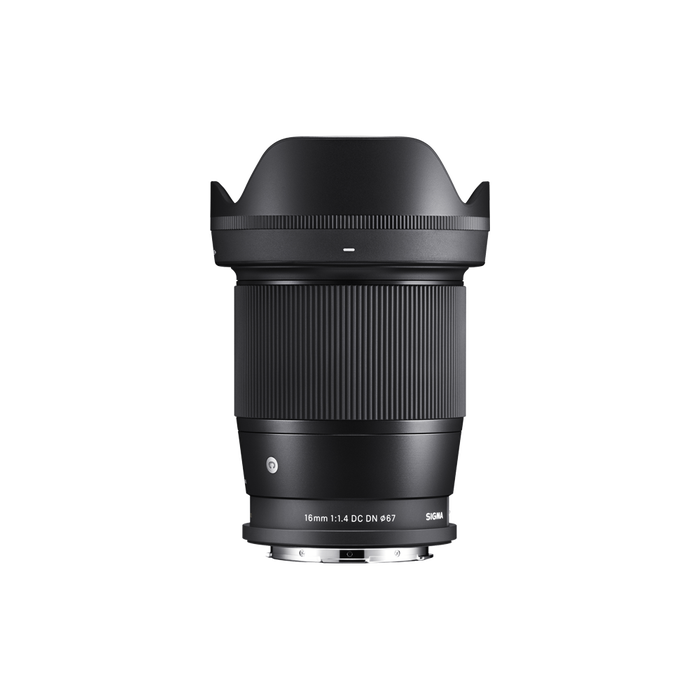

16mm F1.4
DC DN
- Designed for crop sensor mirrorless
- Wide, versatile focal length
- Ultra-fast F1.4 maximum aperture
- Outstanding low-light performance
- Superb sharpness at all apertures
- Minimizes optical aberrations
- Quiet and fast stepping motor
- Dust and splash resistant mount*
- Minimized flare and ghosting
- Compatible with Lens Aberration Correction**
- Made in Japan
*Dust and splash resistant mount exclusive to L-mount, X Mount, Canon RF Mount, and Nikon Z Mount only.
**Function available on supported cameras only. Available corrections / functionality may vary depending on camera model.
AWARDS
|
|
|
| Angle of view | Wide Angle |
|---|---|
| Camera Type | Mirrorless |
| Lens Mount | L-mount, Fujifilm X Mount, Canon EF-M Mount, Canon RF Mount, Sony E-mount, MFT Mount, Nikon Z Mount |
| Sensor Size | APS-C, Micro Four Thirds |
| Construction | 16 Elements in 13 Groups |
| Angle of view | 83.4º (X Mount: 83.4º) |
| Number of diaphragm blades | 9 (rounded diaphragm) |
| Minimum aperture | F16 |
| Minimum focusing distance | 25 cm |
| Maximum magnification ratio | 1:9.9 |
| Filter diameter | 67mm |
| Dimensions (diameter x length) | Sony E-mount ⌀ 72.2 mm x 92.3 mm |
| Weight (g) | Sony E-mount 405 g |
| Edition number | C017 (X Mount: C022) |
| Supplied Accessories | Lens Hood LH716-01, Front CAp LCF-67mm III, Rear Cap LCR II |
| Accessories | WR Ceramic Protector Filter 67mm, WR Protector Filter 67mm, USB-dock UD-11 (L-mount and EF-M mount only), Soft Case LS-302S1A |
| EAN | Sony E-mount 085126402655 |
| Specifications Info | * L-Mount is a registered trademark of Leica Camera AG. |
A new system for mirrorless cameras
Following the 30mm F1.4, the next in the series: the 16mm F1.4
Over the years, SIGMA has built an extensive lineup of bright prime lenses ranging from wide-angle to telephoto. Now, for mirrorless cameras, SIGMA is developing a range of interchangeable lenses that feature a lightweight, compact package for convenient daily shooting while delivering superior performance and covering the key focal lengths.
Released in 2016 as the first of a new series of prime lenses for mirrorless cameras, the 30mm F1.4 DC DN | Contemporary combined F1.4 brightness with top-level optical performance. In order to achieve this low f-number in a large-diameter Contemporary lens, SIGMA took on a wide variety of challenges, leveraging its latest optical design technologies, incorporating updated video capabilities, and utilizing in-camera digital correction* to further improve the lens’s optical quality. While prioritizing optical performance, SIGMA developed a lightweight, compact package with steady AF that is truly easy to operate.
Like the 30mm F1.4 DC DN | Contemporary, the 16mm F1.4 DC DN | Contemporary features SIGMA’s latest design technologies to offer F1.4 brightness while minimizing optical aberrations.
* Limited to what the camera supports.
EOS-M series cameras incompatible with aberration correction
Cameras incompatible with distortion correction
EOS M5, EOS M6, EOS M100, EOS M10, EOS M3, EOS M2, EOS M
A member of the high-performance Contemporary line, featuring Sigma’s latest technologies
For optimal balance with light, compact camera bodies with a short flange back distance, Sigma designed the new Sigma 16mm F1.4 DC DN | Contemporary lens to be extremely compact. Moreover, the special design of the focus lens group allows fast and smooth AF performance for videography and more. This lens combines a compact design and comfortable operation while prioritizing outstanding image quality. Featuring Sigma’s latest technologies, this lens digitally corrects optical distortion.
The stepping motor delivers excellent autofocus with quiet performance.
The optical design and stepping motor deliver smooth autofocus during video shooting. The lens design fully accommodates the Fast Hybrid AF of Sony E-mount cameras for super-fast autofocus functionality. Using face recognition AF results in consistent autofocusing on faces, even as the subjects move.
Combining compactness with outstanding optical performance
The Sigma 16mm F1.4 DC DN | Contemporary features Sigma’s inner focus technologies, while lighter lens elements in the focus lens group make possible a more compact actuator. Moreover, this lens offers outstanding stability whether the photographer is shooting handheld or has the camera placed on a surface. Structurally, the lens features materials and parts that contribute to its compact, lightweight structure. In summary, this is an unprecedented lens that combines outstanding optical performance with exceptional portability and usability.
Large lens hood (supplied) to keep out harmful rays
The lens hood cuts harmful rays that can negatively affect photographs while also minimizing reflectivity within the hood itself. The hood also features a rubber construction and a non-slip groove to make it easy to hold in a variety of shooting situations.
High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
Mount with Dust and Splash Resistant Structure
The mount features a special sealing* for a dust and splash resistant structure to make the lens an excellent choice in a wide variety of conditions.
*Except for Canon EF-M mount
Image quality rivaling that of our Art line lenses
Minimizing sagittal coma flare
With 16 elements in 13 groups, the optical system features a multitude of high-tech and high-end components, including three FLD glass elements, two SLD glass elements, and two molded glass aspherical elements. This optical system minimizes optical aberrations and ensures outstanding resolution at wide-open aperture and throughout the aperture range. In particular, the two aspherical lens elements have ultra-high-precision surfaces polished to tolerances under 10 nanometers, minimizing the onion ring bokeh effect that some aspherical elements produce and ensuring clear image quality throughout the frame. In addition, the structure of the optical system gently bends light to minimize sagittal coma flare and deliver optimal optical performance from the center of the frame to the edges. The result is a smooth, round bokeh effect with ample light volume throughout the frame.
Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.
Bright prime functionality to experience photography at its best
A bright prime lens is the ideal way to experience the essence of the art of photography. Simply select a focal length that matches the image and enjoy complete control of the depth of field.
The 16mm F1.4 DC DN | Contemporary is the world’s first interchangeable lens for mirrorless Sony E-mount cameras in the APS-C format to offer a 24mm focal length (35mm equivalent) and F1.4 brightness. The lens for Micro Four Thirds offers a 32mm focal length (35mm equivalent) with the same bright F1.4 aperture. This is the large-diameter wide-angle lens for which mirrorless camera users have been waiting.
Rounded diaphragm
The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

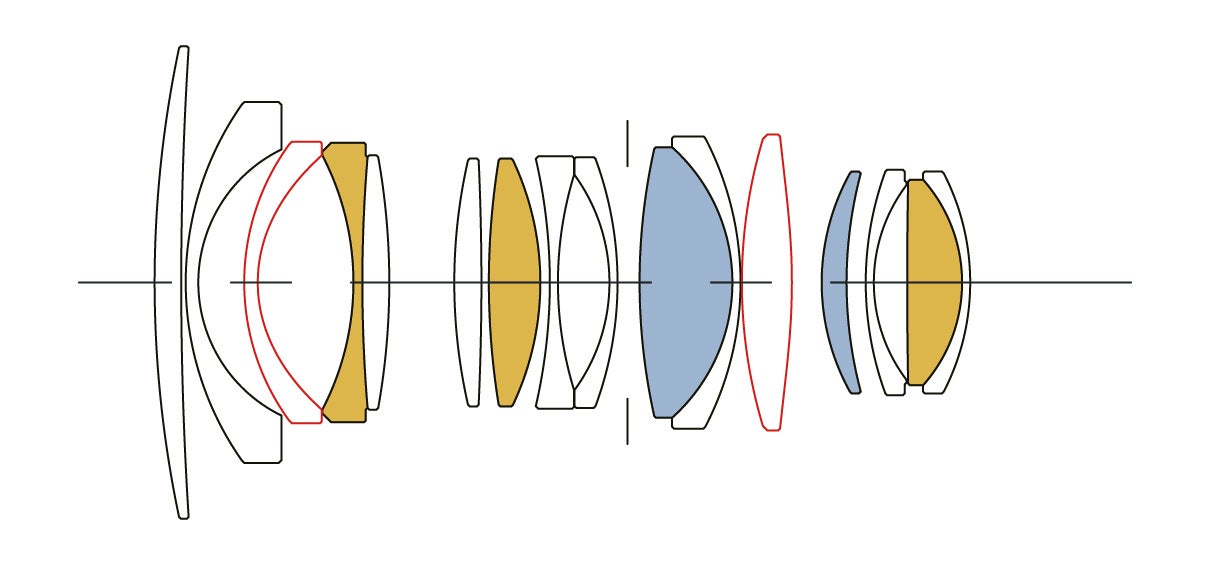

LENS CONSTRUCTION
|
|
|
|
|
FLD GLASS
SLD GLASS
MTF CHART
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
|
Spatial frequency |
S:Sagittal Line |
M: Meridional Line |
|
10lp/mm |
|
|
|
30lp/mm |
|
|

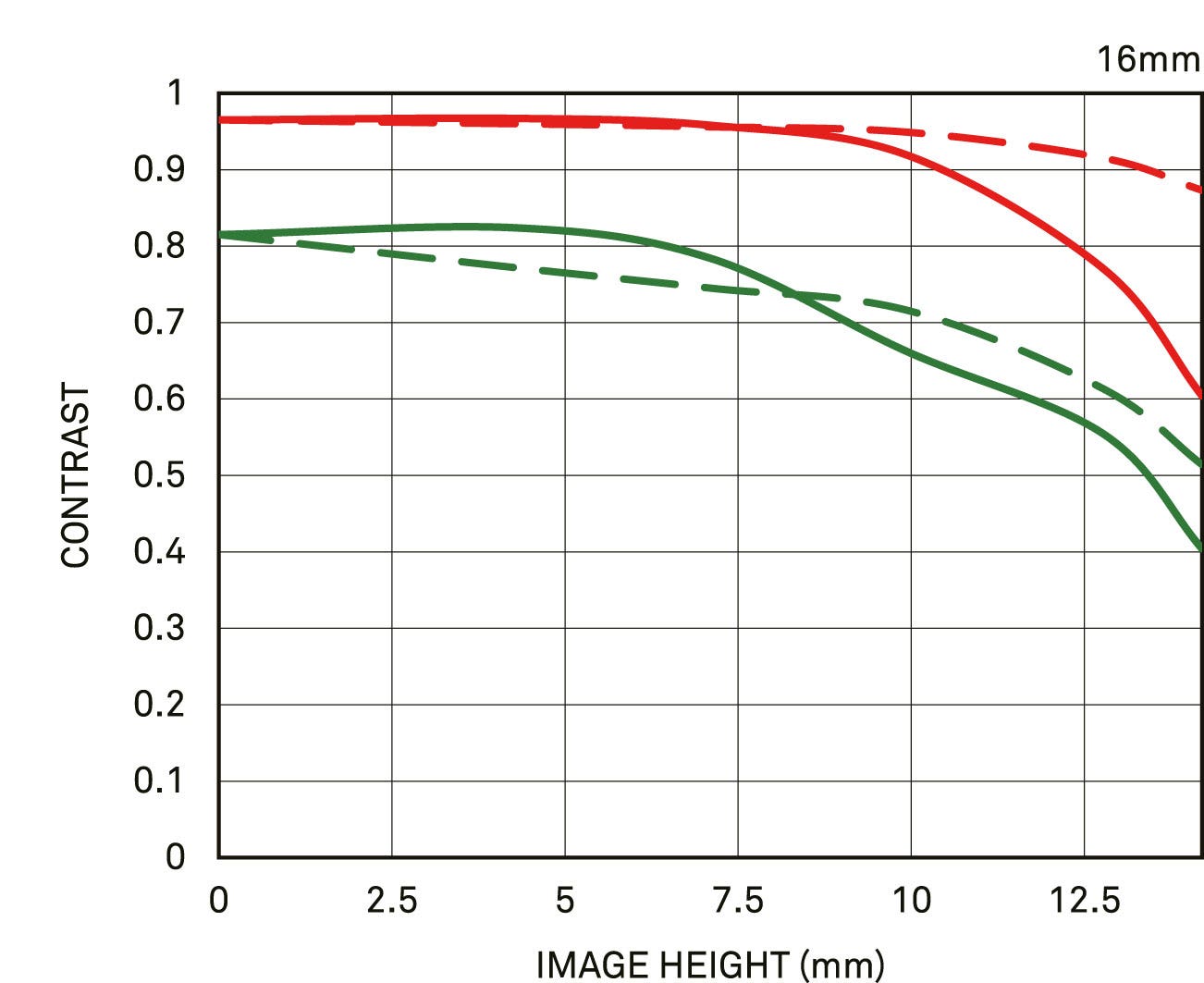

DIFFRACTION MTF
DIFFRACTION MTF

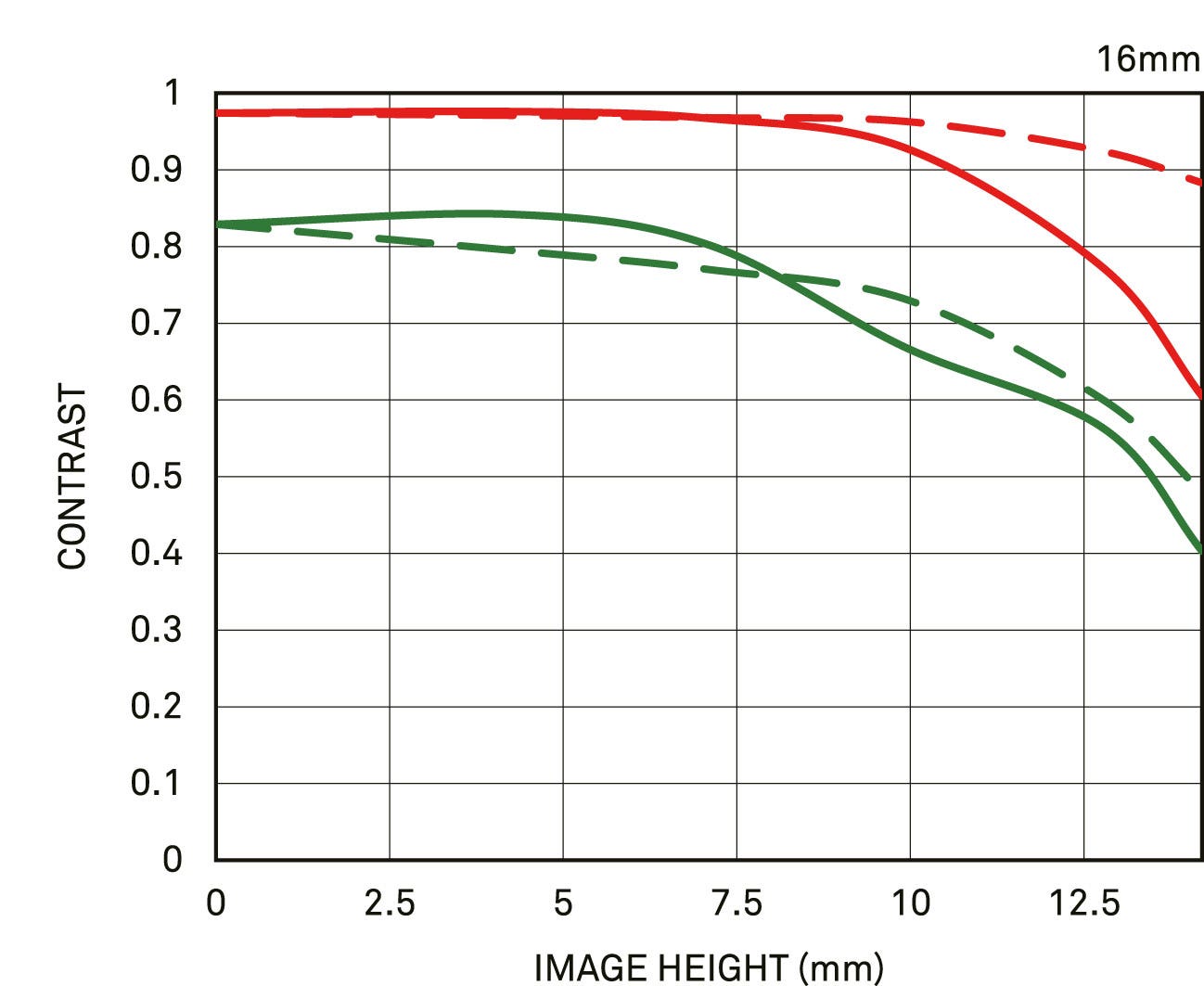

GEOMETRICAL MTF
GEOMETRICAL MTF
Linear focus / Non-linear focus (for L-Mount only
A focus movement method of interchangeable lenses for mirrorless cameras (DN lens) in relation to the rotational angle of the focus ring during manual focusing.
With "non-linear focus," the amount of focal point movement varies depending on the focus ring rotational speed.
With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).
High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
Mount with Dust and Splash Resistant Structure
The lens mount incorporates rubber sealing to protect the mount from dust and water drops.
Rounded diaphragm
The polygonal shape of a conventional iris dia phragm causes out-of-focus light points to appear polygonal. A rounded diaphragm is designed to pro duce rounded out-of-focus light points when opened to near maximum aperture. This creates attractive bokeh effects in many situations, such as when pho tographing a subject against an out-of-focus surface of water from which light is being reflected.
Exclusive low-dispersion glass
The degree to which light is refracted by glass depends on the light's wavelength. This fact causes different colors of light to focus at slightly different points. The result is chromatic aberration, the color fringing that is particularly noticeable in telephoto lenses. Most chromatic aberration can be removed by combining a high-refractivity convex lens element with a low-refractivity concave element. Yet residual chromatic aberration known as "secondary spectrum" may still remain. To minimize this secondary spectrum, which can be a serious issue with conventional lenses, SIGMA lenses feature up to three types of exclusive low-dispersion glass offering superior performance: ELD (Extraordinary Low Dispersion), SLD (Special Low Dispersion) and FLD ("F" Low Dispersion). In particular, FLD glass offers ultra-low dispersion in combination with high transmittance and the anomalous dispersion characteristics of fluorite. Meticulous deployment of these types of exclusive low-dispersion glass and optimization of power distribution gives SIGMA lenses superlative image rendition undiminished by residual chromatic aberration.
|
Camera |
Nikon Z fc |
|
Shutter Speed |
1/250s |
|
Lens F Number |
F5.6 |
|
ISO |
200 |
|
Focal Length |
16mm |
|
Photographer |
Hideyuki Abe |
A NEW SOLUTION FOR MIRRORLESS CAMERA USERS
COMBINING F1.4 BRIGHTNESS AND A COMPACT BODY
INTRODUCING A NEW HIGH-PERFORMANCE,
LARGE-DIAMETER WIDE-ANGLE LENS
Offering an opportunity to experience the fun of shooting wide open, with F1.4 brightness
The new Sigma 16mm F1.4 DC DN | Contemporary is the world’s first interchangeable lens for mirrorless Sony E-mount cameras in the APS-C format to offer a 24mm focal length (35mm equivalent) and F1.4 brightness. The lens for Micro Four Thirds offers a 32mm focal length (35mm equivalent) with the same f-number of 1.4. This is the large-diameter wide-angle lens for which mirrorless camera users have been waiting.
Developed to feature a lightweight, compact package for everyday use, Sigma DN lenses for mirrorless cameras deliver superior performance covering the key focal lengths. The new lens builds on the success of the 30mm F1.4 DC DN | Contemporary, which Sigma released in 2016 as the first in a new series of prime lenses for mirrorless cameras. The 16mm F1.4 DC DN | Contemporary also combines F1.4 brightness with top-level optical performance.
Sharing its development concept with the Sigma 30mm F1.4 DC DN | Contemporary, the 16mm F1.4 DC DN | Contemporary features a lens structure with 16 elements in 13 groups and includes the finest materials. This lens effectively minimizes optical aberrations and offers superb resolution at wide-open aperture and throughout the aperture range. The optical design and stepping motor deliver smooth autofocus during video shooting, while the mount features a special sealing for a dust and splash resistant structure.
